Bootstrap Layout Form

Introduction

In the recent handful of years the mobile gadgets became such critical component of our daily lives that the majority of us just can't really imagine how we got to get around without needing them and this is definitely being said not simply for calling others by communicating as if you remember was actually the initial function of the mobiles however actually getting in touch with the entire world by featuring it straight in your arms. That is actually why it also ended up being extremely significant for the most common habitants of the Online world-- the web pages have to reveal just as fantastic on the small-sized mobile displays as on the regular desktops which meanwhile got even wider making the dimension difference even larger. It is supposed someplace at the beginning of all this the responsive systems come to show up providing a helpful solution and a selection of clever tools for having web pages behave despite the gadget viewing them.

But what's quite possibly vital and stocks the roots of so called responsive web site design is the strategy in itself-- it's completely different from the one we used to have indeed for the fixed width webpages from the very last years which subsequently is a lot identical to the one in the world of print. In print we do have a canvass-- we specified it up once in the start of the project to alter it up perhaps a number of times as the work goes on but near the bottom line we finish up with a media of size A and also art work with size B positioned on it at the indicated X, Y coordinates and that's it-- the moment the project is completed and the sizes have been aligned it all ends.

In responsive web design even so there is simply no such aspect as canvas size-- the possible viewport dimensions are as pretty much limitless so putting up a fixed value for an offset or a dimension can be wonderful on one screen however quite annoying on another-- at the additional and of the specter. What the responsive frameworks and especially the most prominent of them-- Bootstrap in its own most current fourth version supply is certain smart ways the web pages are being actually created so they systematically resize and reorder their particular parts adjusting to the space the viewing display provides and not moving away from its own size-- through this the visitor has the ability to scroll only up/down and gets the content in a convenient scale for reading free from needing to pinch zoom in or out to view this section or yet another. Let us discover exactly how this generally works out. ( discover more)

Ways to work with the Bootstrap Layout Responsive:

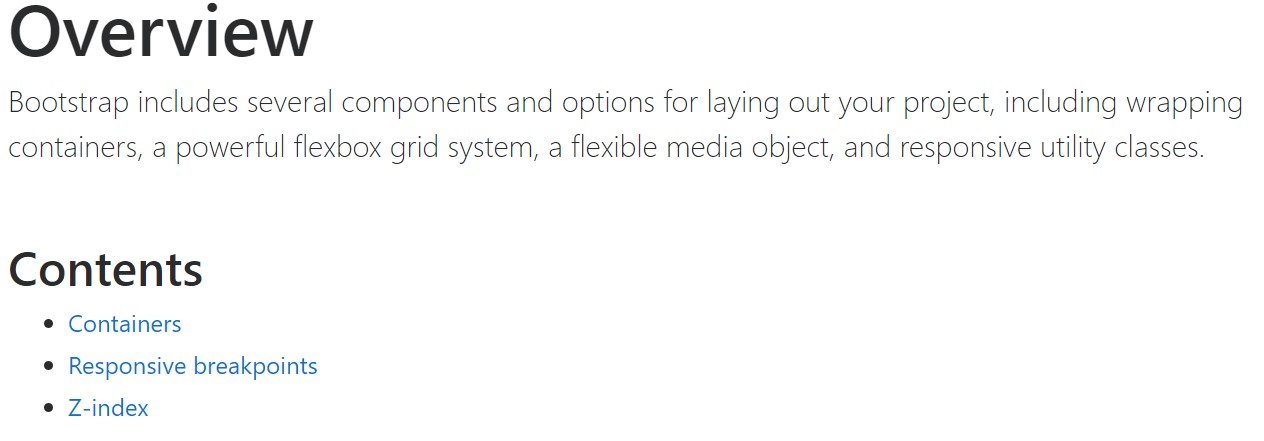

Bootstrap includes several components and options for installing your project, consisting of wrapping containers, a impressive flexbox grid system, a versatile media object, and responsive utility classes.

Bootstrap 4 framework employs the CRc system to handle the web page's web content. If you are actually just beginning this the abbreviation gets simpler to remember due to the fact that you are going to most likely in certain cases question at first what element contains what. This come for Container-- Row-- Columns that is the structure Bootstrap framework uses with regard to making the pages responsive. Each responsive web page incorporates containers holding basically a single row with the needed amount of columns within it-- all of them together forming a useful material block on page-- like an article's heading or body , selection of material's features and so on.

Let us have a glance at a single web content block-- like some features of anything being actually listed out on a webpage. First we are in need of wrapping the entire detail into a

.container

it is certainly kind of the mini canvas we'll set our material inside. What the container performs is limiting the size of the space we have accessible for installing our material. Containers are specified to expand up to a particular size according to the one of the viewport-- always continuing to be a little bit smaller keeping some free space aside. With the change of the viewport size and possible maximum size of the container component dynamically alters too. There is one more form of container -

.container-fluid

it always expands the whole width of the presented viewport-- it is actually applied for developing the so called full-width web page Bootstrap Layout Form.

Next within our

.container

we should install a

.row

component.

These are employed for taking care of the arrangement of the content components we put within. Given that newest alpha 6 version of the Bootstrap 4 system applies a designating method called flexbox with the row element now all kind of placements setup, distribution and sizing of the content may be achieved with simply just putting in a practical class however this is a complete new story-- for now do understand this is the component it is actually done with.

Lastly-- inside the row we need to install certain

.col-

components which are the real columns holding our priceless web content. In the instance of the features list-- each feature gets installed within its own column. Columns are the ones which operating together with the Row and the Container elements supply the responsive activity of the webpage. The things columns generally do is display inline to a specified viewport width getting the determined section of it and stacking over one another as soon as the viewport obtains smaller sized filling the whole width accessible . And so in case the screen is bigger you can easily view a number of columns each time yet if it gets far too little you'll discover them by the piece so you do not need to stare going through the material.

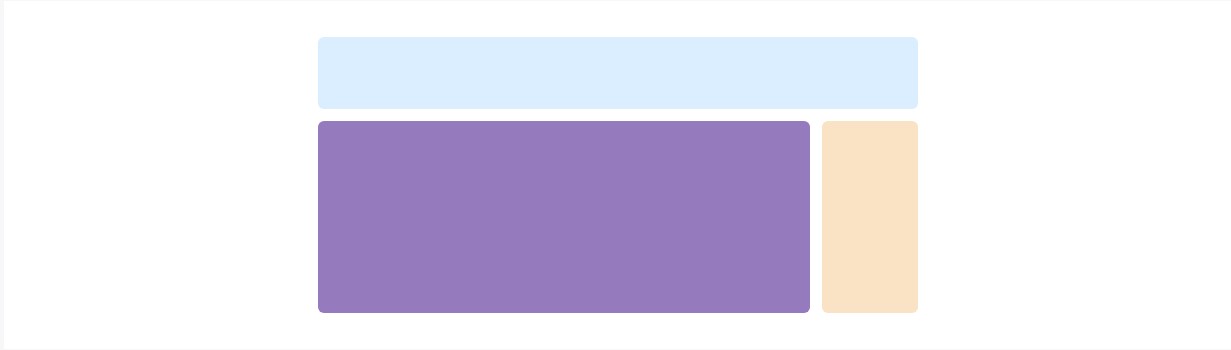

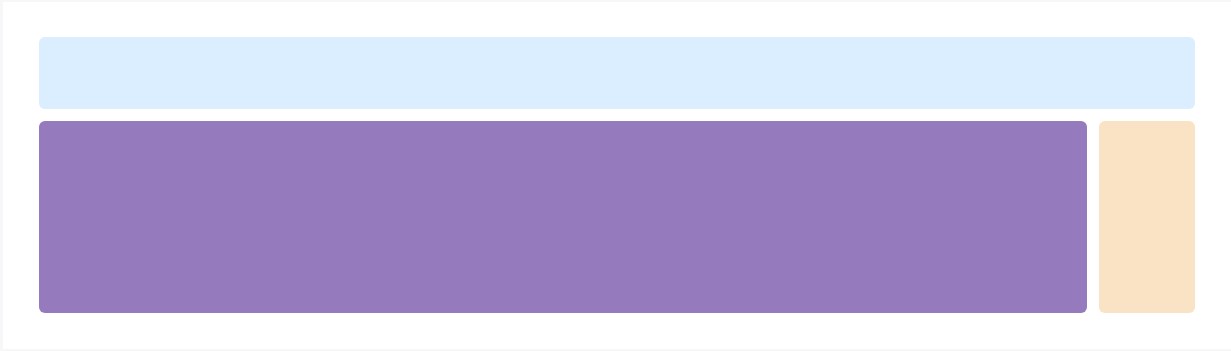

Standard configurations

Containers are really the most essential layout component inside Bootstrap and are called for whenever utilizing default grid system. Pick a responsive, fixed-width container ( suggesting its

max-width

changes at each breakpoint) or maybe fluid-width ( showing it is actually

100%

wide all the time).

Even though containers may possibly be nested, a large number of Bootstrap Layouts layouts do not demand a nested container.

<div class="container">
  <!-- Content here -->
</div>

Operate

.container-fluid

for a total size container, extending the entire width of the viewport.

<div class="container-fluid">
  ...
</div>

Explore some responsive breakpoints

Since Bootstrap is established to be actually mobile first, we utilize a number of media queries to develop sensible breakpoints for layouts and interfaces . These particular breakpoints are mainly built on minimum viewport sizes and enable us to scale up features just as the viewport changes .

Bootstrap primarily uses the following media query ranges-- or breakpoints-- in Sass files for style, grid structure, and components.

// Extra small devices (portrait phones, less than 576px)
// No media query since this is the default in Bootstrap

// Small devices (landscape phones, 576px and up)
@media (min-width: 576px)  ...

// Medium devices (tablets, 768px and up)
@media (min-width: 768px)  ...

// Large devices (desktops, 992px and up)
@media (min-width: 992px)  ...

// Extra large devices (large desktops, 1200px and up)
@media (min-width: 1200px)  ...

As we write source CSS inside Sass, all Bootstrap media queries are actually available through Sass mixins:

@include media-breakpoint-up(xs)  ...
@include media-breakpoint-up(sm)  ...
@include media-breakpoint-up(md)  ...
@include media-breakpoint-up(lg)  ...
@include media-breakpoint-up(xl)  ...

// Example usage:
@include media-breakpoint-up(sm)
  .some-class
    display: block;

We periodically use media queries that proceed in the additional way (the provided display screen dimension or smaller sized):

// Extra small devices (portrait phones, less than 576px)
@media (max-width: 575px)  ...

// Small devices (landscape phones, less than 768px)
@media (max-width: 767px)  ...

// Medium devices (tablets, less than 992px)
@media (max-width: 991px)  ...

// Large devices (desktops, less than 1200px)
@media (max-width: 1199px)  ...

// Extra large devices (large desktops)
// No media query since the extra-large breakpoint has no upper bound on its width

Once more, these types of media queries are in addition obtainable through Sass mixins:

@include media-breakpoint-down(xs)  ...
@include media-breakpoint-down(sm)  ...
@include media-breakpoint-down(md)  ...
@include media-breakpoint-down(lg)  ...

There are additionally media queries and mixins for targeting a particular segment of display sizes utilizing the lowest and max breakpoint sizes.

// Extra small devices (portrait phones, less than 576px)
@media (max-width: 575px)  ...

// Small devices (landscape phones, 576px and up)
@media (min-width: 576px) and (max-width: 767px)  ...

// Medium devices (tablets, 768px and up)
@media (min-width: 768px) and (max-width: 991px)  ...

// Large devices (desktops, 992px and up)
@media (min-width: 992px) and (max-width: 1199px)  ...

// Extra large devices (large desktops, 1200px and up)
@media (min-width: 1200px)  ...

These media queries are likewise obtainable via Sass mixins:

@include media-breakpoint-only(xs)  ...
@include media-breakpoint-only(sm)  ...
@include media-breakpoint-only(md)  ...
@include media-breakpoint-only(lg)  ...
@include media-breakpoint-only(xl)  ...

Likewise, media queries may possibly reach several breakpoint sizes:

// Example
// Apply styles starting from medium devices and up to extra large devices
@media (min-width: 768px) and (max-width: 1199px)  ...

The Sass mixin for focus on the exact same display dimension range would certainly be:

@include media-breakpoint-between(md, xl)  ...

Z-index

Numerous Bootstrap items apply

z-index

, the CSS property which assists command format simply by delivering a 3rd axis to line up content. We use a default z-index scale in Bootstrap that is really been prepared for appropriately layer site navigation, tooltips and popovers , modals, and more.

We don't suggest personalization of such values; you change one, you likely have to transform them all.

$zindex-dropdown-backdrop:  990 !default;
$zindex-navbar:            1000 !default;
$zindex-dropdown:          1000 !default;
$zindex-fixed:             1030 !default;
$zindex-sticky:            1030 !default;
$zindex-modal-backdrop:    1040 !default;
$zindex-modal:             1050 !default;
$zindex-popover:           1060 !default;
$zindex-tooltip:           1070 !default;

Background elements-- just like the backdrops that make it possible for click-dismissing-- usually reside on a low

z-index

-s, while site navigation and popovers employ better

z-index

-s to make sure they overlay surrounding web content.

Another suggestion

With the Bootstrap 4 framework you are able to develop to five separate column visual appeals baseding on the predefined in the framework breakpoints yet usually 2 to 3 are quite enough for getting finest appeal on all displays. ( recommended reading)

Conclusions

And so right now hopefully you do possess a fundamental thought what responsive web site design and frameworks are and how the most well-known of them the Bootstrap 4 system manages the webpage web content in order to make it display best in any screen-- that is certainly just a short look but It's considerd the awareness just how the things do a job is the greatest structure one should move on right before searching into the details.
