Bootstrap Columns Tutorial

Introduction

In the last handful of years and undoubtedly the following ones to come the universe of world wide web spreading more and much more extensively throughout each sort of machines and so right now practically half of the views of the webpages online are performed not really on pc and laptop computer screens yet from different mobile devices with each kinds of small-scale display screen proportions. And so on the occasion that a page will not show properly-- signifying to resize and automatically get its optimal shape on the gadget utilized its probably will get browsed away to become substituted by a mobile phone friendly page offering quite similar service or product.

In addition-- the indexing engines just like Google make the so called mobile-friendly test and indicate far down your pages around the search results. This lowering is even deeper in the case that the search is executed by a mobile phone-- the search engines feel this specific issue fairly seriously. So not possessing a mobile friendly webpage nearly implies not possessing a page at all.

Efficient ways to employ the Bootstrap Columns Working:

Although what really a page occurring responsive means-- generally-- fitting all width of the display screen which beings exhibited on introducing the features with practical and clear manner at any scale. To manage this the Bootstrap framework applies so called columns and breakpoints . In a few words the breakpoints are actually predefined screen widths at which a modification comes about and the Bootstrap Columns Work become reordered to simply fit preferable. The prior version worked with 4 breakpoints and the absolute most recent Bootstrap 4 system launches one added so they become actually five. Here they are together with the highest value they extend to. The exact boundary number in itself refers to the following display size.

Extra small up to 34em ( or 544px) – up to Bootstrap 4 Alpha 5 had the

-xs-

infix. In Bootstrap 4 alpha 6 this infix is dropped so just the number follows;

Small – from 34em up to 48em ( or 768px ) – has the

-sm-

infix;

Medium – from 48em up to 62em ( or 992px ) – has the

-md-

infix;

Large – from 62em up to 75em ( 1200px ) -

-lg-

infix;

Extra large – 75em and everything above it – the new size in Bootstrap 4 – has the

-xl-

infix.

Additional techniques

The horizontal sector in Bootstrap 4 system gets divided in 12 items identical in width-- these are the so called columns-- they all bringing the

.col-

prefix. Later comes the screen dimension infix which in turn specified down to which display size the column element will span the pointed out quantity of columns. In case that the screen sizing is more compact -- the column feature takes up the whole display width-- like it was specified

.col-12

.col-xs-12

up to Bootstrap 4 alpha 5. ( more hints)

Auto configuration columns

Apply breakpoint-specific column classes for equal-width columns. Incorporate any variety of unit-less classes for every breakpoint you really need and every Bootstrap Columns Example is going to be the exact same width.

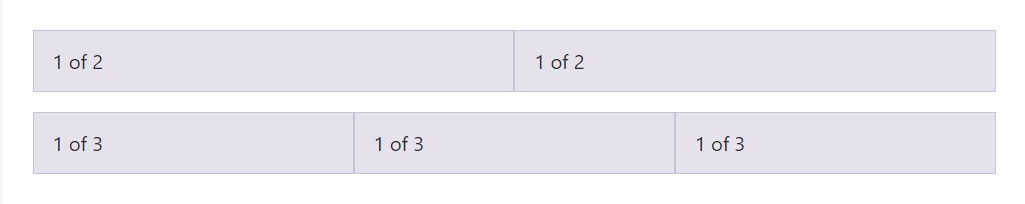

Equivalent size

For instance, here are two grid layouts that used on every device and viewport, from

xs

<div class="container">
  <div class="row">
    <div class="col">
      1 of 2
    </div>
    <div class="col">
      1 of 2
    </div>
  </div>
  <div class="row">
    <div class="col">
      1 of 3
    </div>
    <div class="col">
      1 of 3
    </div>
    <div class="col">
      1 of 3
    </div>
  </div>
</div>

Putting one column size

Auto-layout for flexbox grid columns as well shows you can certainly establish the width of one column and the others are going to immediately resize about it. You may possibly utilize predefined grid classes (as shown here), grid mixins, or possibly inline widths. Notice that the various columns will resize despite the width of the center column.

<div class="container">
  <div class="row">
    <div class="col">
      1 of 3
    </div>
    <div class="col-6">
      2 of 3 (wider)
    </div>
    <div class="col">
      3 of 3
    </div>
  </div>
  <div class="row">
    <div class="col">
      1 of 3
    </div>
    <div class="col-5">
      2 of 3 (wider)
    </div>
    <div class="col">
      3 of 3
    </div>
  </div>
</div>

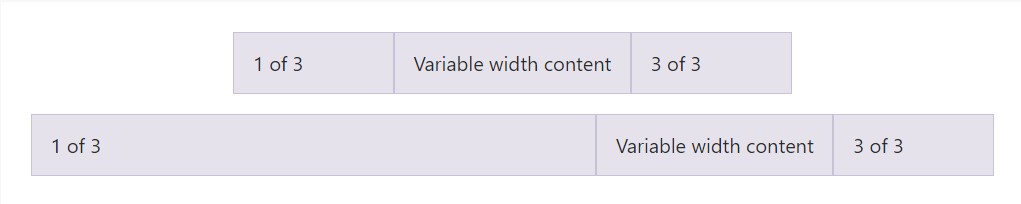

Variable width web content

Applying the

col-  breakpoint  -auto

classes, columns can absolutely size itself built upon the usual size of its material. This is super useful having one line content like inputs, numbers, etc. This specific, together with horizontal alignment classes, is incredibly effective for focusing designs having unequal column sizes as viewport width evolves.

<div class="container">
  <div class="row justify-content-md-center">
    <div class="col col-lg-2">
      1 of 3
    </div>
    <div class="col-12 col-md-auto">
      Variable width content
    </div>
    <div class="col col-lg-2">
      3 of 3
    </div>
  </div>
  <div class="row">
    <div class="col">
      1 of 3
    </div>
    <div class="col-12 col-md-auto">
      Variable width content
    </div>
    <div class="col col-lg-2">
      3 of 3
    </div>
  </div>
</div>

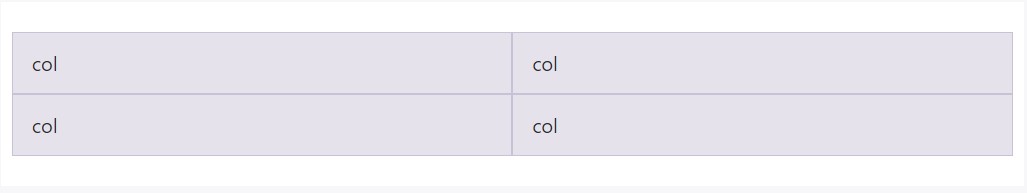

Identical width multi-row

Generate equal-width columns that span multiple rows by adding a

.w-100

specifically where you really want the columns to break to a new line. Help make the divisions responsive through mixing the

.w-100

together with some responsive screen utilities.

<div class="row">
  <div class="col">col</div>
  <div class="col">col</div>
  <div class="w-100"></div>
  <div class="col">col</div>
  <div class="col">col</div>
</div>

Yet another brand new thing

Another new thing among the latest Alpha 6 build of Bootstrap 4 is in case that you incorporate simply just a few

.col-~ some number here ~

items spanning less than 12 columns they are going to really deliver proportionally to involve all the zone attainable on the row and will keep in this way at any display screen width-- also under 32em. ( read more here)

Final thoughts

So right now you understand specifically how the column components set up the design and responsive activity of the Bootstrap system and all that is certainly left for you is producing something truly outstanding using them.
