Bootstrap Progress bar Panel

Intro

We know pretty well this specific empty horizontal component being really shown void at first and becoming full of a dynamic color bit by bit as an operation, a download of a documents or else typically any action is being actually executed drop by drop-- we find it every day on our computers so the information it delivers became very intuitive to obtain-- something becomes completed and presently it's finished at this specific number of percent or else assuming that you prefer considering the clear part of the glass-- there is this much left before ending up .Another good point is that the notification it gives doesn't run into any type of language barrier since it clean visual so whenever comes time for presenting the level of our numerous capabilities, or else the development or even various elements of a project or basically anything having a complete and not a lot parts it is simply great we are able to have this kind of graphic feature positioned straight into our webpages in a swift and easy way.

( discover more)

What is actually improved?

Inside of the current fourth version of the absolute most prominent mobile friendly system this becomes even speedier and simpler with simply a single tag element and also there are really a lot of modifications available which in turn are completed with just designating the proper classes. What's new here is since the Bootstrap 4 drops the IE9 support we can now take complete benefit of the abilities of HTML5 and as an alternative to developing the outer so called empty container with a

<div>

first and wrapping within the true fill amount in an additional

<div>

element inside it and styling its own size to display the actual Bootstrap Progress bar Modal as it used to be with the former version currently we can certainly simply employ the HTML5

<progress>

element preparing the maximum value and the value so far accomplished just as properties.

Primary capabilities

In order to begin simply build a

<progress>

component along with the class

.progress

assigned to it and add the

value = " ~ the amount you have progressed so far ~ "

and

max = " ~ the overall amount ~ "

attributes to it. There is actually a critical aspect here-- these can certainly be any numbers at all-- the logic is the

max

attribute value must always be larger in comparison to the

value

itself however, in the case that you play around and create the max smaller sized than the progression value in itself you'll just turn out with a filled progress bar much like the job's been totally handled. However you do not actually require to expect everything to get those values in percentage or what ever-- assuming that for instance you possess 2567 strawberries to eat and you have likely enjoyed 378 of them-- record it exactly { by doing this and the progress bar will certainly reveal properly spreading out the colored element as far as 378 interacts to 2567-- fast and convenient .

And so now when we know just how it does the job let us see exactly how to make it look more effective appointing certain effects and colors . Firstly-- we can easily use the contextual classes merged together with the

.progress-

in a class-- such as

.progress-warning  , .progress-info

and so forth specified to the

<progress>

component. We have the ability to in addition add in a few stripes to our progress bars through the

.progress-bar-striped

class as well as certain animation to these stripes with the

.progress-bar-animated

applied.

And finally if you need to obtain older browser compatibility you can use two

<div>

elements – as in the older version outer one with just the

.progress

class and inner with all the appearance adjustment classes and an inline styling setting the filled in width like

style = " width:23%; "

- still works as well.

And lastly if you have to acquire older browser compatibility you can employ a pair of

<div>

elements-- just as in the older version outer one with just the

.progress

class and inner with all of the appeal adjustment classes and an inline designing setting the filled width like

style = " width:23%; "

- still does the job too.

Examples and ideas

Ways to work with the Bootstrap Progress bar Jquery:

Bootstrap Progress bar Jquery components are developed with two HTML components, certain CSS to specify the size, and also a few attributes.

We employ the

.progress

as a wrapper to indicate the maximum value of the progress bar.

We operate the inner

.progress-bar

to signify the progress so far.

The

.progress-bar

demands an inline design, utility class, or else custom CSS to specify their width.

The

.progress-bar

additionally needs some

role

and

aria

attributes to make it accessible.

Set that all with each other, and you possess the following some examples.

<div class="progress">
  <div class="progress-bar" role="progressbar" aria-valuenow="0" aria-valuemin="0" aria-valuemax="100"></div>
</div>
<div class="progress">
  <div class="progress-bar" role="progressbar" style="width: 25%" aria-valuenow="25" aria-valuemin="0" aria-valuemax="100"></div>
</div>
<div class="progress">
  <div class="progress-bar" role="progressbar" style="width: 50%" aria-valuenow="50" aria-valuemin="0" aria-valuemax="100"></div>
</div>
<div class="progress">
  <div class="progress-bar" role="progressbar" style="width: 75%" aria-valuenow="75" aria-valuemin="0" aria-valuemax="100"></div>
</div>
<div class="progress">
  <div class="progress-bar" role="progressbar" style="width: 100%" aria-valuenow="100" aria-valuemin="0" aria-valuemax="100"></div>
</div>

Bootstrap provides a number of utilities for setting width. According to your goals, these may possibly assist with easily arranging progress.

<div class="progress">
  <div class="progress-bar w-75" role="progressbar" aria-valuenow="75" aria-valuemin="0" aria-valuemax="100"></div>
</div>

Customing

Customise the visual appeal of your progress bars using custom CSS, background utilities, stripes, and far more.

Labels

Provide labels to your progress bars with placing text with the

.progress-bar

<div class="progress">
  <div class="progress-bar" role="progressbar" style="width: 25%;" aria-valuenow="25" aria-valuemin="0" aria-valuemax="100">25%</div>
</div>

Height

We simply set a

height

value on the

.progress-bar

so in the event that you improve that value the external

.progress

will automatically resize properly .

<div class="progress">
  <div class="progress-bar" role="progressbar" style="width: 25%; height: 1px;" aria-valuenow="25" aria-valuemin="0" aria-valuemax="100"></div>
</div>
<div class="progress">
  <div class="progress-bar" role="progressbar" style="width: 25%; height: 20px;" aria-valuenow="25" aria-valuemin="0" aria-valuemax="100"></div>
</div>

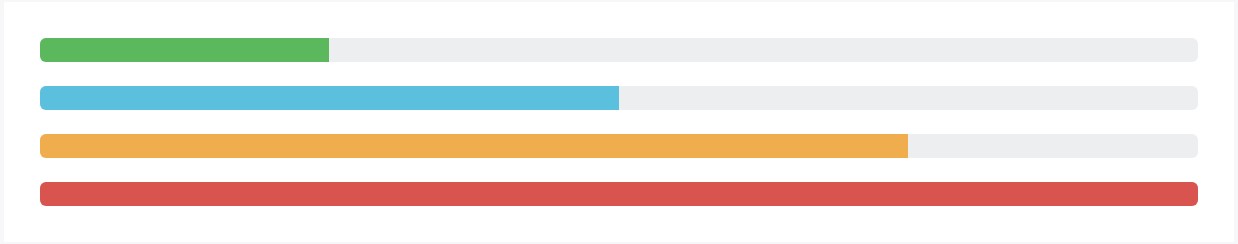

Backgrounds

Employ background utility classes to evolve the visual appeal of individual progress bars.

<div class="progress">
  <div class="progress-bar bg-success" role="progressbar" style="width: 25%" aria-valuenow="25" aria-valuemin="0" aria-valuemax="100"></div>
</div>
<div class="progress">
  <div class="progress-bar bg-info" role="progressbar" style="width: 50%" aria-valuenow="50" aria-valuemin="0" aria-valuemax="100"></div>
</div>
<div class="progress">
  <div class="progress-bar bg-warning" role="progressbar" style="width: 75%" aria-valuenow="75" aria-valuemin="0" aria-valuemax="100"></div>
</div>
<div class="progress">
  <div class="progress-bar bg-danger" role="progressbar" style="width: 100%" aria-valuenow="100" aria-valuemin="0" aria-valuemax="100"></div>
</div>

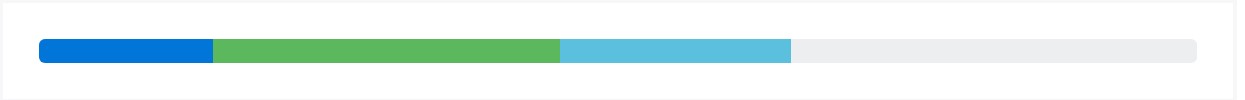

Several bars

If you want, include numerous progress bars in a progress element .

<div class="progress">
  <div class="progress-bar" role="progressbar" style="width: 15%" aria-valuenow="15" aria-valuemin="0" aria-valuemax="100"></div>
  <div class="progress-bar bg-success" role="progressbar" style="width: 30%" aria-valuenow="30" aria-valuemin="0" aria-valuemax="100"></div>
  <div class="progress-bar bg-info" role="progressbar" style="width: 20%" aria-valuenow="20" aria-valuemin="0" aria-valuemax="100"></div>
</div>

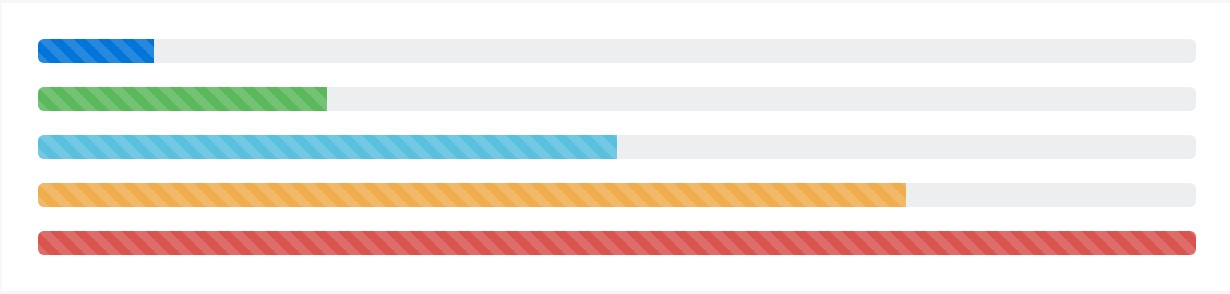

Striped

Provide

.progress-bar-striped

to any

.progress-bar

to apply a stripe via CSS gradient over the progress bar's background color tone.

<div class="progress">
  <div class="progress-bar progress-bar-striped" role="progressbar" style="width: 10%" aria-valuenow="10" aria-valuemin="0" aria-valuemax="100"></div>
</div>
<div class="progress">
  <div class="progress-bar progress-bar-striped bg-success" role="progressbar" style="width: 25%" aria-valuenow="25" aria-valuemin="0" aria-valuemax="100"></div>
</div>
<div class="progress">
  <div class="progress-bar progress-bar-striped bg-info" role="progressbar" style="width: 50%" aria-valuenow="50" aria-valuemin="0" aria-valuemax="100"></div>
</div>
<div class="progress">
  <div class="progress-bar progress-bar-striped bg-warning" role="progressbar" style="width: 75%" aria-valuenow="75" aria-valuemin="0" aria-valuemax="100"></div>
</div>
<div class="progress">
  <div class="progress-bar progress-bar-striped bg-danger" role="progressbar" style="width: 100%" aria-valuenow="100" aria-valuemin="0" aria-valuemax="100"></div>
</div>

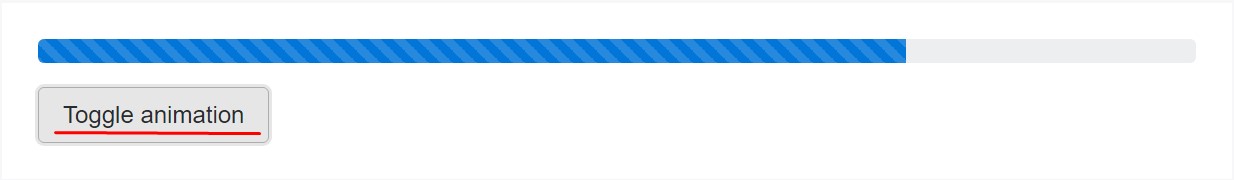

Animated stripes

The striped gradient can additionally be actually animated. Incorporate

.progress-bar-animated

.progress-bar

in order to animate the stripes right to left using CSS3 animations. ( more info)

Animated progress bars do not operating in Opera 12-- considering that they don't help CSS3 animations.

<div class="progress">
  <div class="progress-bar progress-bar-striped progress-bar-animated" role="progressbar" aria-valuenow="75" aria-valuemin="0" aria-valuemax="100" style="width: 75%"></div>
</div>

Conclusions

So primarily that is simply the manner you have the ability to demonstrate your progress in almost immediate and colorful progress bar elements with Bootstrap 4-- now all you need is certain works in progress in order to get them present.
