Bootstrap Button groups active

Overview

Inside of the webpages we establish we commonly possess a handful of available options to present or a several actions which in turn may possibly be eventually required pertaining to a particular item or a topic so it would definitely be pretty helpful in the event that they got an practical and straightforward solution styling the controls responsible for the site visitor taking one route or yet another during a compact group with universal appeal and designing.

To look after this type of cases the most recent version of the Bootstrap framework-- Bootstrap 4 has entire assistance to the so called Bootstrap Button groups value which typically are just exactly what the name mention-- bunches of buttons covered like a one element together with all the components in seeming practically the exact same so it's convenient for the site visitor to decide on the right one and it's much less troubling for the eye given that there is definitely no free area between the certain components in the group-- it seems like a single button bar using a number of selections.

Steps to make use of the Bootstrap Button groups label:

Creating a button group is actually really simple-- all you really need is simply an element together with the class

.btn-group

to wrap in your buttons. This creates a horizontally aligned group of buttons-- in the event you want a up and down loaded group work with the

.btn-group-vertical

class as an alternative.

The size of the buttons inside a group may possibly be universally handled so using specifying a single class to the whole group you can surely get both small or large buttons in it-- just add in

.btn-group-sm

for small-sized or else

.btn-group-lg

class to the

.btn-group

component and all the buttons inside will obtain the determined size. Unlike the previous edition you can not tell the buttons in the group to reveal extra small due to the fact that the

.btn-group-xs

class in no longer maintained by the Bootstrap 4 framework. You are able to ultimately incorporate a couple of button groups in to a toolbar simply just covering them inside a

.btn-toolbar

element or else nest a group inside another to put in a dropdown element inside the child button group.

General example

Cover a variety of buttons by having

.btn

within

.btn-group

<div class="btn-group" role="group" aria-label="Basic example">
  <button type="button" class="btn btn-secondary">Left</button>
  <button type="button" class="btn btn-secondary">Middle</button>
  <button type="button" class="btn btn-secondary">Right</button>
</div>

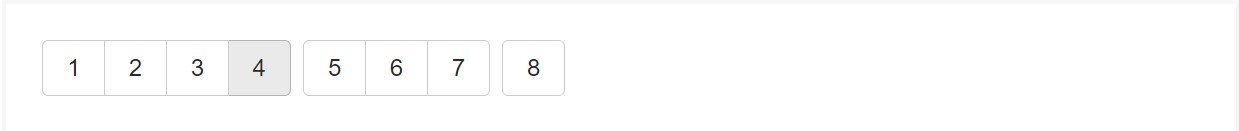

Instance of the Button Toolbar

Combine bunches of Bootstrap Button groups responsive inside button toolbars for more complex components. Apply utility classes functioning as needed to space out groups, tabs, and more.

<div class="btn-toolbar" role="toolbar" aria-label="Toolbar with button groups">
  <div class="btn-group mr-2" role="group" aria-label="First group">
    <button type="button" class="btn btn-secondary">1</button>
    <button type="button" class="btn btn-secondary">2</button>
    <button type="button" class="btn btn-secondary">3</button>
    <button type="button" class="btn btn-secondary">4</button>
  </div>
  <div class="btn-group mr-2" role="group" aria-label="Second group">
    <button type="button" class="btn btn-secondary">5</button>
    <button type="button" class="btn btn-secondary">6</button>
    <button type="button" class="btn btn-secondary">7</button>
  </div>
  <div class="btn-group" role="group" aria-label="Third group">
    <button type="button" class="btn btn-secondary">8</button>
  </div>
</div>

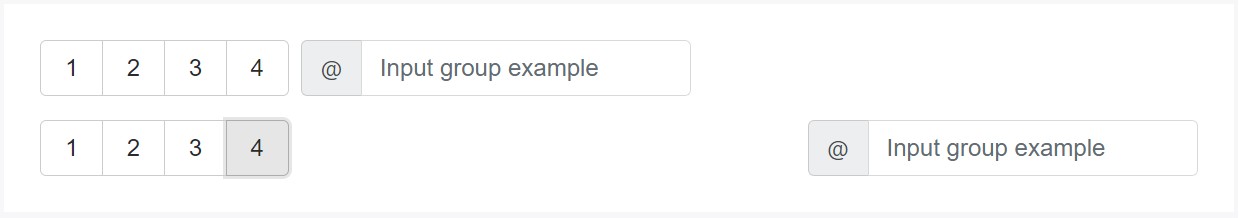

Don't hesitate to combine input groups together with button groups within your toolbars. Like the good example above, you'll very likely require several utilities though to place things successfully.

<div class="btn-toolbar mb-3" role="toolbar" aria-label="Toolbar with button groups">
  <div class="btn-group mr-2" role="group" aria-label="First group">
    <button type="button" class="btn btn-secondary">1</button>
    <button type="button" class="btn btn-secondary">2</button>
    <button type="button" class="btn btn-secondary">3</button>
    <button type="button" class="btn btn-secondary">4</button>
  </div>
  <div class="input-group">
    <span class="input-group-addon" id="btnGroupAddon">@</span>
    <input type="text" class="form-control" placeholder="Input group example" aria-describedby="btnGroupAddon">
  </div>
</div>

<div class="btn-toolbar justify-content-between" role="toolbar" aria-label="Toolbar with button groups">
  <div class="btn-group" role="group" aria-label="First group">
    <button type="button" class="btn btn-secondary">1</button>
    <button type="button" class="btn btn-secondary">2</button>
    <button type="button" class="btn btn-secondary">3</button>
    <button type="button" class="btn btn-secondary">4</button>
  </div>
  <div class="input-group">
    <span class="input-group-addon" id="btnGroupAddon2">@</span>
    <input type="text" class="form-control" placeholder="Input group example" aria-describedby="btnGroupAddon2">
  </div>
</div>

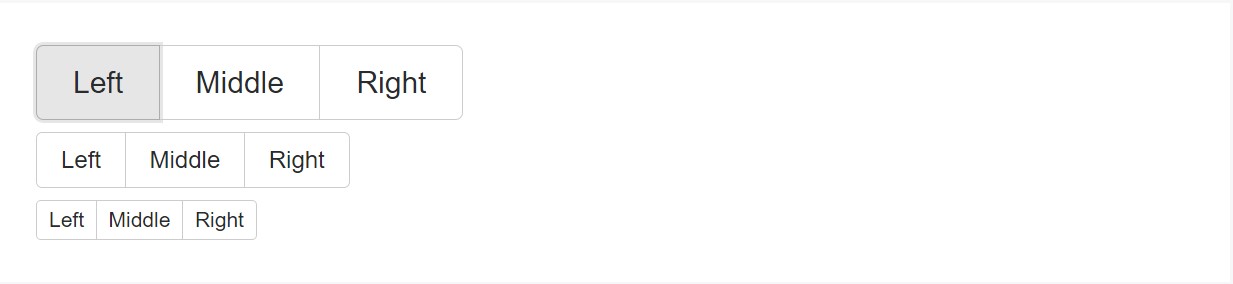

Proportions

Instead of employing button sizing classes to every button inside a group, just add

.btn-group-*

to every

.btn-group

, consisting of each one when nesting multiple groups

<div class="btn-group btn-group-lg" role="group" aria-label="...">...</div>
<div class="btn-group" role="group" aria-label="...">...</div>
<div class="btn-group btn-group-sm" role="group" aria-label="...">...</div>

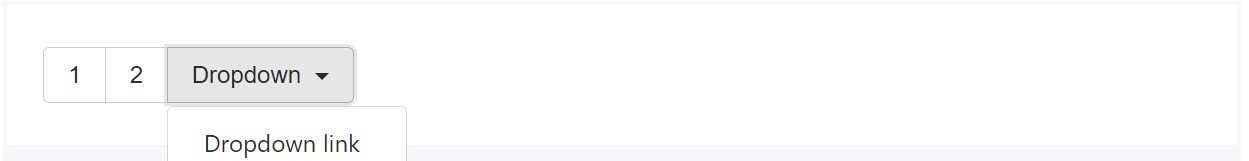

Nesting

Put a

.btn-group

within one more

.btn-group

if you really want dropdown menus combined with a set of buttons. ( useful reference)

<div class="btn-group" role="group" aria-label="Button group with nested dropdown">
  <button type="button" class="btn btn-secondary">1</button>
  <button type="button" class="btn btn-secondary">2</button>

  <div class="btn-group" role="group">
    <button id="btnGroupDrop1" type="button" class="btn btn-secondary dropdown-toggle" data-toggle="dropdown" aria-haspopup="true" aria-expanded="false">
      Dropdown
    </button>
    <div class="dropdown-menu" aria-labelledby="btnGroupDrop1">
      <a class="dropdown-item" href="#">Dropdown link</a>
      <a class="dropdown-item" href="#">Dropdown link</a>
    </div>
  </div>
</div>

Upright version

Create a group of buttons appear like vertically loaded instead of horizontally. Split button dropdowns are not really upheld here.

<div class="btn-group-vertical">
  ...
</div>

Popovers plus Tooltips

Caused by the specific setup ( and also other components), a piece of unique casing is needed for tooltips and popovers inside of button groups. You'll ought to indicate the option

container: 'body'

to prevent unwanted side results (such as the component expanding wider and/or getting rid of its own round corners whenever the tooltip or else popover is caused). ( get more information)

Yet another factor to consider

To get a dropdown button in a

.btn-group

create an additional feature holding the same class in it and wrap it around a

<button>

with the

.dropdown-toggle

class,

data-toggle="dropdown"

plus

type="button"

attributes. Next together with this

<button>

made a

<div>

with the class

.dropdown-menu

and produce the hyperlinks of your dropdown in it ensuring you have designated the

.dropdown-item

class to each and every one of them. That is really the quick and convenient method producing a dropdown inside a button group. Additionally you have the ability to establish a split dropdown following the very same routine simply positioning extra regular button before the

.dropdown-toggle

element and cleaning out the text message inside it so that just the small triangle pointer remains.

Final thoughts

Actually that is normally the way the buttons groups become generated with help from the most prominent mobile friendly framework in its newest edition-- Bootstrap 4. These can possibly be very useful not only exhibit a number of attainable options or a paths to take but additionally just as a additional navigation items coming about at certain locations of your page having regular appearance and easing up the navigating and complete user appeal.
