Bootstrap Grid Tutorial

Intro

Bootstrap provides a powerful mobile-first flexbox grid solution for constructing layouts of all proportions and forms . It is actually built on a 12 column style and has numerous tiers, one for every media query range. You can surely utilize it with Sass mixins or else of the predefined classes.

Among the most necessary element of the Bootstrap framework allowing us to generate responsive website page interactively changing to always suit the width of the display they become presented on continue to looking amazingly is the so called grid structure. The things it mainly does is providing us the feature of producing complex arrangements combining row as well as a specific variety of column components maintained in it. Imagine that the visible size of the display screen is parted in twelve equal parts vertically.

The ways to make use of the Bootstrap grid:

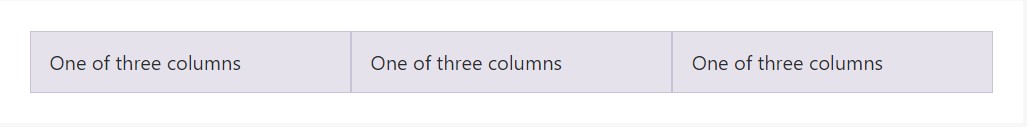

Bootstrap Grid Table uses a variety of columns, rows, and containers to style and also straighten content. It's created by having flexbox and is totally responsive. Below is an illustration and an in-depth explore how the grid interacts.

The mentioned above example builds three equal-width columns on small-sized, medium, large size, and extra large size gadgets employing our predefined grid classes. All those columns are centered in the page having the parent

.container

Here's how it does the job:

- Containers present a method to centralize your internet site's items. Utilize

.container

for concentrated width or else

.container-fluid

for full width.

- Rows are horizontal sets of columns that make certain your columns are actually arranged properly. We make use of the negative margin method upon

.row

to assure all of your content is lined up correctly down the left side.

- Web content should really be inserted within columns, also just columns may be immediate children of rows.

- With the help of flexbox, grid columns free from a established width will promptly format using same widths. As an example, four instances of

.col-sm

will each instantly be 25% big for small breakpoints.

- Column classes reveal the variety of columns you wish to work with outside of the potential 12 per row. { Therefore, in the event that you desire three equal-width columns, you have the ability to employ

.col-sm-4

- Column

widths

are set up in percentages, in this way they're always fluid and also sized relative to their parent component.

- Columns come with horizontal

padding

to develop the gutters in between individual columns, although, you may remove the

margin

from rows and

padding

from columns with

.no-gutters

on the

.row

- There are 5 grid tiers, one for each responsive breakpoint: all breakpoints (extra small), little, standard, big, and extra large.

- Grid tiers are based upon minimal widths, indicating they relate to that one tier and all those above it (e.g.,

.col-sm-4

applies to small, medium, large, and extra large gadgets).

- You are able to apply predefined grid classes as well as Sass mixins for extra semantic markup.

Understand the issues and also bugs around flexbox, like the failure to use several HTML components as flex containers.

Seems good? Excellent, why don't we proceed to experiencing everything with an example. ( more tips here)

Bootstrap Grid CSS capabilities

Typically the column classes are generally something like that

.col- ~ grid size-- two letters ~ - ~ width of the element in columns-- number from 1 to 12 ~

The

.col-

generally stays the same.

The moment it comes to the Bootstrap Grid Template sizings-- all of the available sizes of the viewport (or the viewable location on the display) have been simply parted to five ranges just as follows:

Extra small-- widths under 544px or 34em (which comes to be the default measuring unit around Bootstrap 4

.col-xs-*

Small – 544px (34em) and over until 768px( 48em )

.col-sm-*

Medium – 768px (48em ) and over until 992px ( 62em )

.col-md-*

Large – 992px ( 62em ) and over until 1200px ( 75em )

.col-lg-*

Extra large-- 1200px (75em) and everything wider than it

.col-xl-*

While Bootstrap works with

em

-s or else

rem

-s for explaining most sizes,

px

-s are chosen for grid breakpoints and container widths. This is just because the viewport width is in pixels and does not actually change using the font size.

Notice the way in which features of the Bootstrap grid system do a job all around multiple gadgets with a helpful table.

How features of the Bootstrap grid system work

The new and various from Bootstrap 3 here is one special width range-- 34em-- 48em being specified to the

xs

size changing all the widths one range down. With this the sizes of 75em and over get without having a defined size in this way in Bootstrap 4 the Extra Big size becomes proposed to cover it.

Each of the features designated utilizing a certain viewport width and columns manage its overall size in width with regard to this viewport and all above it. When the width of the display goes under the represented viewport size the components pile over one another filling up the whole width of the view .

You can as well appoint an offset to an element through a pointed out number of columns in a specific screen sizing and more than this is done with the classes

.offset- ~ size ~ - ~ columns ~

.offset-lg-3

as an example. This was of defining the offsets is brand new for Bootstrap 4-- the former version worked with the

.col- ~ size ~-offset- ~ columns ~

syntax.

A handful of things to think of when creating the markup-- the grids having columns and rows have to be set into a

.container

elements. There are two types of containers available -- the secured

.container

element which size continues to be intact up until the next viewport size breakpoint is hit and

.container-fluid

which spans the whole width of the viewport.

Primary offspring of the containers are the

.row

components which subsequently become stuffed in by columns. Assuming that you come up to set items with more than 12 columns in width within a single row the last items which width goes over the 12 columns boundary are going to wrap to a new line. Several classes maybe applied for a single element to design its visual aspect in other viewports likewise.

Auto configuration columns

Apply breakpoint-specific column classes for equal-width columns. Put in any number of unit-less classes for each and every breakpoint you need and each and every column will certainly be the exact same width.

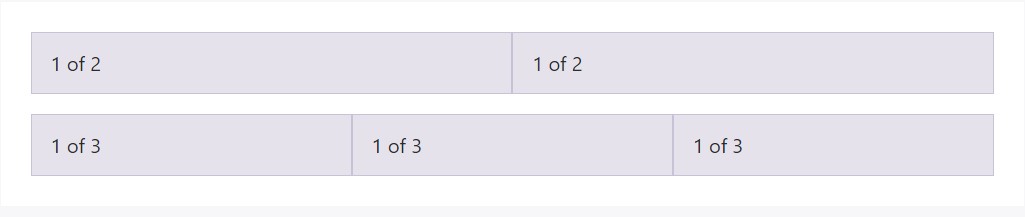

Equal width

For instance, here are two grid formats that placed on each device and viewport, from

xs

<div class="container">
  <div class="row">
    <div class="col">
      1 of 2
    </div>
    <div class="col">
      1 of 2
    </div>
  </div>
  <div class="row">
    <div class="col">
      1 of 3
    </div>
    <div class="col">
      1 of 3
    </div>
    <div class="col">
      1 of 3
    </div>
  </div>
</div>

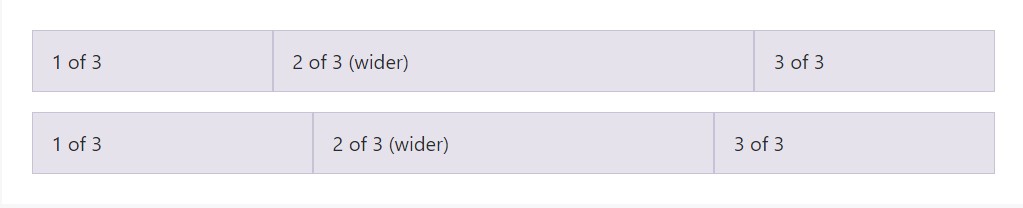

Putting one column size

Auto-layout for the flexbox grid columns additionally signifies you are able to put the width of one column and the others are going to automatically resize about it. You can choose predefined grid classes ( while presented here), grid mixins, or possibly inline widths. Bear in mind that the additional columns will resize despite the width of the center column.

<div class="container">
  <div class="row">
    <div class="col">
      1 of 3
    </div>
    <div class="col-6">
      2 of 3 (wider)
    </div>
    <div class="col">
      3 of 3
    </div>
  </div>
  <div class="row">
    <div class="col">
      1 of 3
    </div>
    <div class="col-5">
      2 of 3 (wider)
    </div>
    <div class="col">
      3 of 3
    </div>
  </div>
</div>

Variable width material

Working with the

col-  breakpoint  -auto

classes, columns may size itself based upon the normal size of its content. This is super practical for one line material like inputs, numbers, and so on. This, together with a horizontal alignment classes, is incredibly effective for focusing structures with irregular column sizes as viewport width improves.

<div class="container">
  <div class="row justify-content-md-center">
    <div class="col col-lg-2">
      1 of 3
    </div>
    <div class="col-12 col-md-auto">
      Variable width content
    </div>
    <div class="col col-lg-2">
      3 of 3
    </div>
  </div>
  <div class="row">
    <div class="col">
      1 of 3
    </div>
    <div class="col-12 col-md-auto">
      Variable width content
    </div>
    <div class="col col-lg-2">
      3 of 3
    </div>
  </div>
</div>

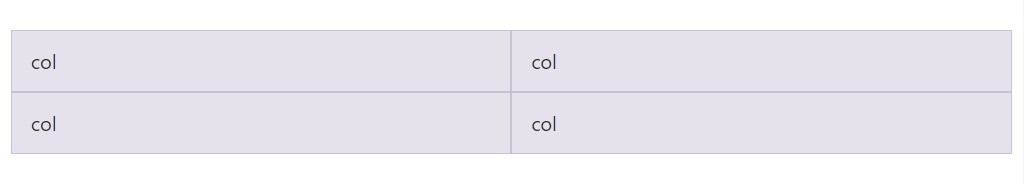

Equivalent size multi-row

Create equal-width columns which span multiple rows via fitting a

.w-100

precisely where you desire the columns to break to a new line. Generate the divisions responsive via mixing the

.w-100

together with some responsive display screen utilities.

<div class="row">
  <div class="col">col</div>
  <div class="col">col</div>
  <div class="w-100"></div>
  <div class="col">col</div>
  <div class="col">col</div>
</div>

Responsive classes

Bootstrap's grid incorporates five tiers of predefined classes for building complex responsive designs. Customise the proportions of your columns on extra small, small, medium, large, as well as extra large devices however you see fit.

All of the breakpoints

To grids which are the exact same from the smallest of devices to the largest, use the

.col

and

.col-*

classes. Specify a numbered class the moment you require a specifically sized column; in addition, don't hesitate to stick to

.col

<div class="row">
  <div class="col">col</div>
  <div class="col">col</div>
  <div class="col">col</div>
  <div class="col">col</div>
</div>
<div class="row">
  <div class="col-8">col-8</div>
  <div class="col-4">col-4</div>
</div>

Piled to horizontal

Utilizing a individual set of

.col-sm-*

classes, you can easily produce a basic grid system that starts piled on extra compact devices before becoming horizontal on personal computer ( ordinary) gadgets.

<div class="row">
  <div class="col-sm-8">col-sm-8</div>
  <div class="col-sm-4">col-sm-4</div>
</div>
<div class="row">
  <div class="col-sm">col-sm</div>
  <div class="col-sm">col-sm</div>
  <div class="col-sm">col-sm</div>
</div>

Mix and match

Don't prefer your columns to just pile in several grid tiers? Work with a mix of various classes for each and every tier as desired. Notice the example here for a more effective concept of ways in which everything acts.

<div class="row">
  <div class="col col-md-8">.col .col-md-8</div>
  <div class="col-6 col-md-4">.col-6 .col-md-4</div>
</div>

<!-- Columns start at 50% wide on mobile and bump up to 33.3% wide on desktop -->
<div class="row">
  <div class="col-6 col-md-4">.col-6 .col-md-4</div>
  <div class="col-6 col-md-4">.col-6 .col-md-4</div>
  <div class="col-6 col-md-4">.col-6 .col-md-4</div>
</div>

<!-- Columns are always 50% wide, on mobile and desktop -->
<div class="row">
  <div class="col-6">.col-6</div>
  <div class="col-6">.col-6</div>
</div>

Arrangement

Use flexbox positioning utilities to vertically and horizontally coordinate columns. ( learn more)

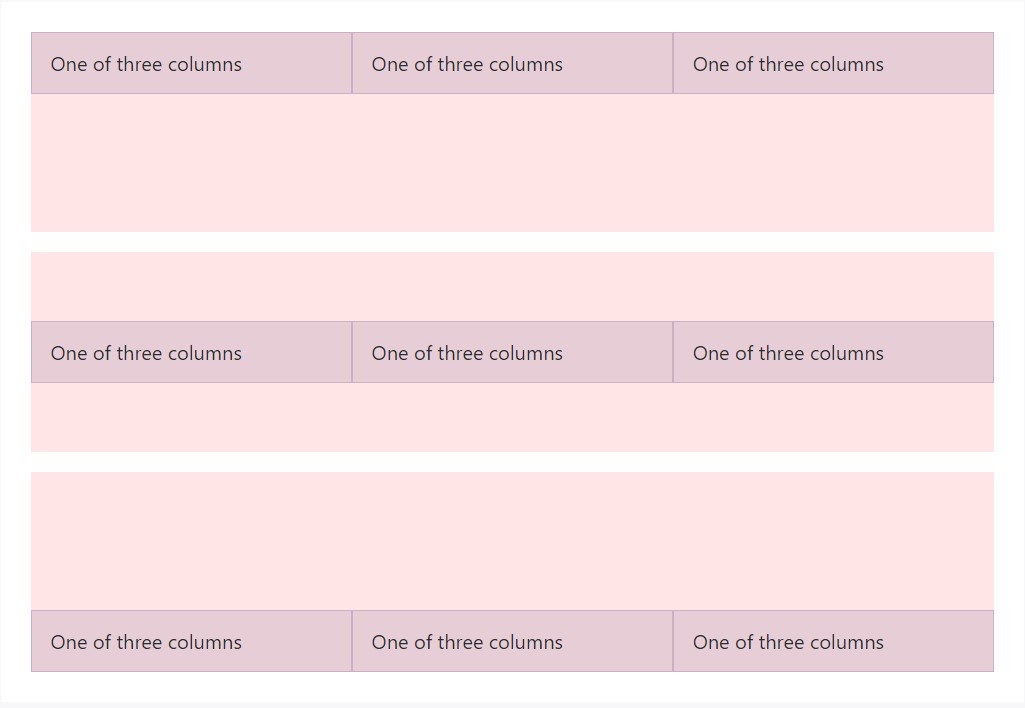

Vertical arrangement

<div class="container">
  <div class="row align-items-start">
    <div class="col">
      One of three columns
    </div>
    <div class="col">
      One of three columns
    </div>
    <div class="col">
      One of three columns
    </div>
  </div>
  <div class="row align-items-center">
    <div class="col">
      One of three columns
    </div>
    <div class="col">
      One of three columns
    </div>
    <div class="col">
      One of three columns
    </div>
  </div>
  <div class="row align-items-end">
    <div class="col">
      One of three columns
    </div>
    <div class="col">
      One of three columns
    </div>
    <div class="col">
      One of three columns
    </div>
  </div>
</div>

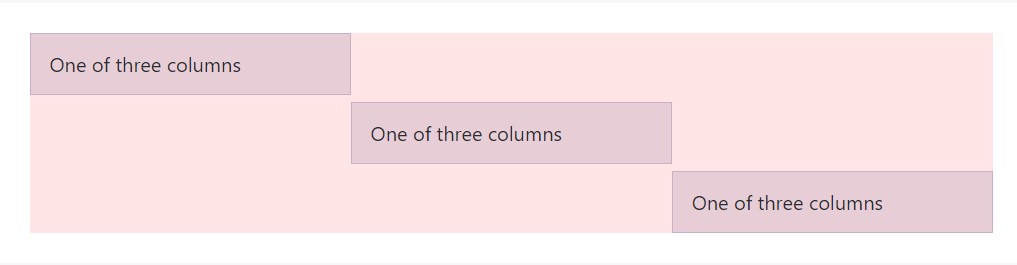

<div class="container">
  <div class="row">
    <div class="col align-self-start">
      One of three columns
    </div>
    <div class="col align-self-center">
      One of three columns
    </div>
    <div class="col align-self-end">
      One of three columns
    </div>
  </div>
</div>

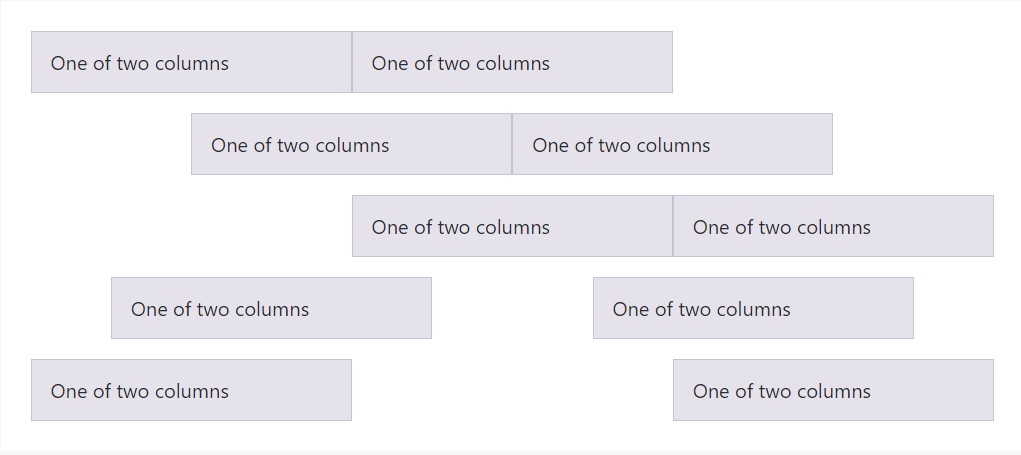

Horizontal arrangement

<div class="container">
  <div class="row justify-content-start">
    <div class="col-4">
      One of two columns
    </div>
    <div class="col-4">
      One of two columns
    </div>
  </div>
  <div class="row justify-content-center">
    <div class="col-4">
      One of two columns
    </div>
    <div class="col-4">
      One of two columns
    </div>
  </div>
  <div class="row justify-content-end">
    <div class="col-4">
      One of two columns
    </div>
    <div class="col-4">
      One of two columns
    </div>
  </div>
  <div class="row justify-content-around">
    <div class="col-4">
      One of two columns
    </div>
    <div class="col-4">
      One of two columns
    </div>
  </div>
  <div class="row justify-content-between">
    <div class="col-4">
      One of two columns
    </div>
    <div class="col-4">
      One of two columns
    </div>
  </div>
</div>

No gutters

The gutters among columns within our predefined grid classes can be removed with

.no-gutters

This gets rid of the unwanted

margin

-s from

.row

as well as the horizontal

padding

from all nearby children columns.

Here's the source code for creating these types of varieties. Take note that column overrides are scoped to simply the very first children columns and are targeted via attribute selector. While this creates a more particular selector, column padding have the ability to still be extra modified with space utilities.

.no-gutters
  margin-right: 0;
  margin-left: 0;

  > .col,
  > [class*="col-"]
    padding-right: 0;
    padding-left: 0;

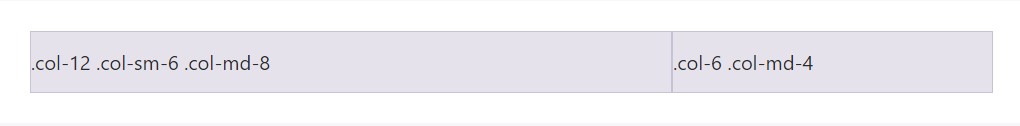

In practice, here's precisely how it looks. Keep in mind you have the ability to continue to employ this along with all of various other predefined grid classes ( providing column sizes, responsive tiers, reorders, and furthermore ).

<div class="row no-gutters">
  <div class="col-12 col-sm-6 col-md-8">.col-12 .col-sm-6 .col-md-8</div>
  <div class="col-6 col-md-4">.col-6 .col-md-4</div>
</div>

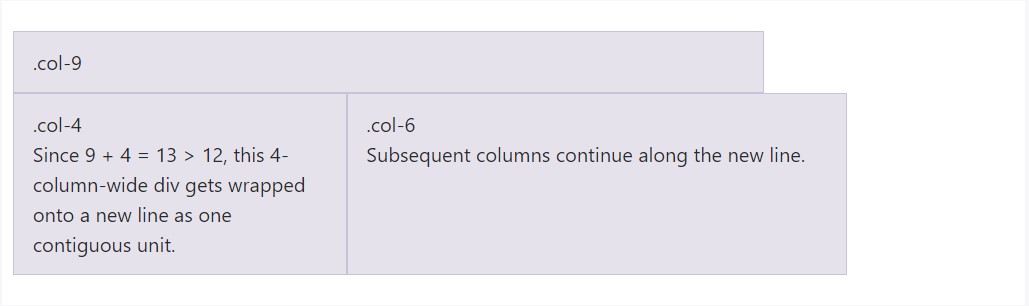

Column wrap

In the case that more than just 12 columns are situated within a single row, each and every set of extra columns will, as being one unit, wrap onto a new line.

<div class="row">
  <div class="col-9">.col-9</div>
  <div class="col-4">.col-4<br>Since 9 + 4 = 13 > 12, this 4-column-wide div gets wrapped onto a new line as one contiguous unit.</div>
  <div class="col-6">.col-6<br>Subsequent columns continue along the new line.</div>
</div>

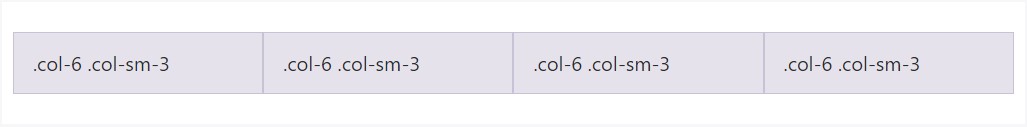

Reseting of the columns

With the handful of grid tiers readily available, you're expecteded to face challenges where, at certain breakpoints, your columns don't clear pretty correct as one is taller in comparison to the other. To deal with that, make use of a mixture of a

.clearfix

and responsive utility classes.

<div class="row">
  <div class="col-6 col-sm-3">.col-6 .col-sm-3</div>
  <div class="col-6 col-sm-3">.col-6 .col-sm-3</div>

  <!-- Add the extra clearfix for only the required viewport -->
  <div class="clearfix hidden-sm-up"></div>

  <div class="col-6 col-sm-3">.col-6 .col-sm-3</div>
  <div class="col-6 col-sm-3">.col-6 .col-sm-3</div>
</div>

Along with column clearing up at responsive breakpoints, you may likely have to reset offsets, pushes, or else pulls. Observe this practical in the grid sample.

<div class="row">
  <div class="col-sm-5 col-md-6">.col-sm-5 .col-md-6</div>
  <div class="col-sm-5 offset-sm-2 col-md-6 offset-md-0">.col-sm-5 .offset-sm-2 .col-md-6 .offset-md-0</div>
</div>

<div class="row">
  <div class="col-sm-6 col-md-5 col-lg-6">.col.col-sm-6.col-md-5.col-lg-6</div>
  <div class="col-sm-6 col-md-5 offset-md-2 col-lg-6 offset-lg-0">.col-sm-6 .col-md-5 .offset-md-2 .col-lg-6 .offset-lg-0</div>
</div>

Re-ordering

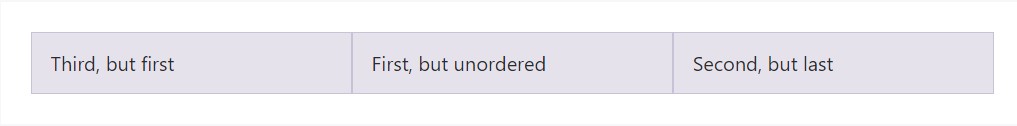

Flex order

Employ flexbox utilities for handling the visible structure of your content.

<div class="container">
  <div class="row">
    <div class="col flex-unordered">
      First, but unordered
    </div>
    <div class="col flex-last">
      Second, but last
    </div>
    <div class="col flex-first">
      Third, but first
    </div>
  </div>
</div>

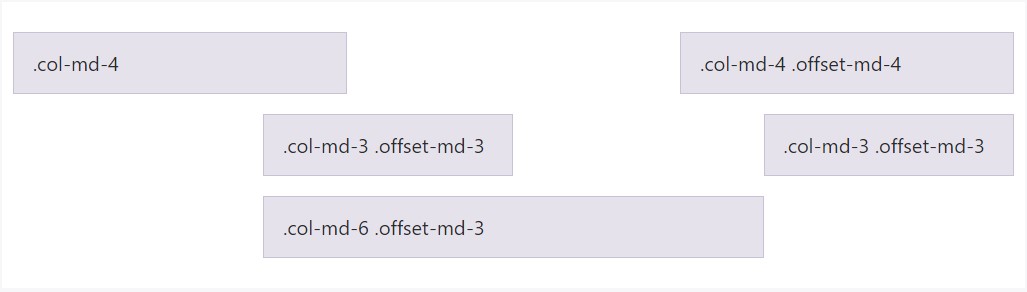

Countering columns

Transfer columns to the right applying

.offset-md-*

classes. These classes escalate the left margin of a column by

columns. For example,

.offset-md-4

moves

.col-md-4

over four columns.

<div class="row">
  <div class="col-md-4">.col-md-4</div>
  <div class="col-md-4 offset-md-4">.col-md-4 .offset-md-4</div>
</div>
<div class="row">
  <div class="col-md-3 offset-md-3">.col-md-3 .offset-md-3</div>
  <div class="col-md-3 offset-md-3">.col-md-3 .offset-md-3</div>
</div>
<div class="row">
  <div class="col-md-6 offset-md-3">.col-md-6 .offset-md-3</div>
</div>

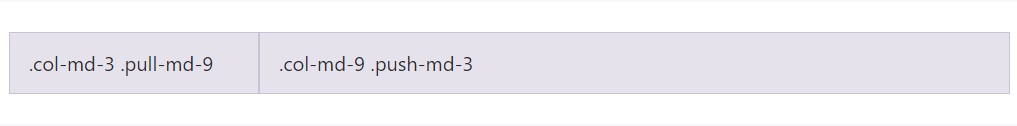

Pull and push

Easily transform the order of our built-in grid columns along with

.push-md-*

and

.pull-md-*

modifier classes.

<div class="row">
  <div class="col-md-9 push-md-3">.col-md-9 .push-md-3</div>
  <div class="col-md-3 pull-md-9">.col-md-3 .pull-md-9</div>
</div>

Material posting

To roost your web content along with the default grid, include a brand-new

.row

and set of

.col-sm-*

columns within an existing

.col-sm-*

column. Nested rows ought to incorporate a group of columns that amount to 12 or fewer (it is not required that you use all of the 12 accessible columns).

<div class="row">
  <div class="col-sm-9">
    Level 1: .col-sm-9
    <div class="row">
      <div class="col-8 col-sm-6">
        Level 2: .col-8 .col-sm-6
      </div>
      <div class="col-4 col-sm-6">
        Level 2: .col-4 .col-sm-6
      </div>
    </div>
  </div>
</div>

Making use of Bootstrap's origin Sass files

The moment applying Bootstrap's source Sass data, you have the opportunity of utilizing Sass variables and mixins to generate custom, semantic, and responsive page formats. Our predefined grid classes operate these exact same variables and mixins to provide a whole package of ready-to-use classes for fast responsive formats .

Solutions

Variables and maps identify the amount of columns, the gutter width, as well as the media query aspect. We apply these to develop the predefined grid classes detailed earlier, as well as for the custom made mixins listed here.

$grid-columns:      12;
$grid-gutter-width-base: 30px;

$grid-gutter-widths: (
  xs: $grid-gutter-width-base, // 30px
  sm: $grid-gutter-width-base, // 30px
  md: $grid-gutter-width-base, // 30px
  lg: $grid-gutter-width-base, // 30px
  xl: $grid-gutter-width-base  // 30px
)

$grid-breakpoints: (
  // Extra small screen / phone
  xs: 0,
  // Small screen / phone
  sm: 576px,
  // Medium screen / tablet
  md: 768px,
  // Large screen / desktop
  lg: 992px,
  // Extra large screen / wide desktop
  xl: 1200px
);

$container-max-widths: (
  sm: 540px,
  md: 720px,
  lg: 960px,
  xl: 1140px
);

Mixins

Mixins are taken in conjunction with the grid variables to bring in semantic CSS for individual grid columns.

@mixin make-row($gutters: $grid-gutter-widths)
  display: flex;
  flex-wrap: wrap;

  @each $breakpoint in map-keys($gutters)
    @include media-breakpoint-up($breakpoint)
      $gutter: map-get($gutters, $breakpoint);
      margin-right: ($gutter / -2);
      margin-left:  ($gutter / -2);




// Make the element grid-ready (applying everything but the width)
@mixin make-col-ready($gutters: $grid-gutter-widths)
  position: relative;
  // Prevent columns from becoming too narrow when at smaller grid tiers by
  // always setting `width: 100%;`. This works because we use `flex` values
  // later on to override this initial width.
  width: 100%;
  min-height: 1px; // Prevent collapsing

  @each $breakpoint in map-keys($gutters)
    @include media-breakpoint-up($breakpoint)
      $gutter: map-get($gutters, $breakpoint);
      padding-right: ($gutter / 2);
      padding-left:  ($gutter / 2);




@mixin make-col($size, $columns: $grid-columns)
  flex: 0 0 percentage($size / $columns);
  width: percentage($size / $columns);
  // Add a `max-width` to ensure content within each column does not blow out
  // the width of the column. Applies to IE10+ and Firefox. Chrome and Safari
  // do not appear to require this.
  max-width: percentage($size / $columns);


// Get fancy by offsetting, or changing the sort order
@mixin make-col-offset($size, $columns: $grid-columns)
  margin-left: percentage($size / $columns);


@mixin make-col-push($size, $columns: $grid-columns)
  left: if($size > 0, percentage($size / $columns), auto);


@mixin make-col-pull($size, $columns: $grid-columns)
  right: if($size > 0, percentage($size / $columns), auto);

Some example usage

You can easily customize the variables to your personal custom made values, or else simply work with the mixins with their default values. Here is literally an illustration of applying the default configurations to develop a two-column format having a divide among.

View it at work within this provided example.

.container
  max-width: 60em;
  @include make-container();

.row
  @include make-row();

.content-main
  @include make-col-ready();

  @media (max-width: 32em)
    @include make-col(6);

  @media (min-width: 32.1em)
    @include make-col(8);


.content-secondary
  @include make-col-ready();

  @media (max-width: 32em)
    @include make-col(6);

  @media (min-width: 32.1em)
    @include make-col(4);

<div class="container">
  <div class="row">
    <div class="content-main">...</div>
    <div class="content-secondary">...</div>
  </div>
</div>

Individualizing the grid

Working with our built-in grid Sass maps and variables , it is really possible to entirely customize the predefined grid classes. Switch the amount of tiers, the media query dimensions, and also the container widths-- then recompile.

Columns and gutters

The number of grid columns and also their horizontal padding (aka, gutters) may possibly be changed by means of Sass variables.

$grid-columns

is utilized to produce the widths (in percent) of each specific column while

$grid-gutter-widths

makes it possible for breakpoint-specific widths that are divided evenly across

padding-left

and

padding-right

for the column gutters.

$grid-columns:               12 !default;
$grid-gutter-width-base:     30px !default;
$grid-gutter-widths: (
  xs: $grid-gutter-width-base,
  sm: $grid-gutter-width-base,
  md: $grid-gutter-width-base,
  lg: $grid-gutter-width-base,
  xl: $grid-gutter-width-base
) !default;

Features of grids

Going beyond the columns themselves, you may likewise customize the quantity of grid tiers. In case you desired only three grid tiers, you would certainly upgrade the

$ grid-breakpoints

and

$ container-max-widths

to something similar to this:

$grid-breakpoints: (
  sm: 480px,
  md: 768px,
  lg: 1024px
);

$container-max-widths: (
  sm: 420px,
  md: 720px,
  lg: 960px
);

The instant generating any kind of changes to the Sass variables or maps , you'll require to save your updates and recompile. Doing so are going to out a new group of predefined grid classes for column widths, offsets, pushes, and pulls. Responsive visibility utilities are going to as well be updated to employ the custom made breakpoints.

Conclusions

These are basically the undeveloped column grids in the framework. Applying special classes we have the ability to direct the special features to span a established number of columns baseding upon the real width in pixels of the viewable zone in which the page gets demonstrated. And considering that there are actually a numerous classes specifying the column width of the elements instead of checking out every one it is simply more effective to try to understand ways in which they in fact become built-- it's very easy to remember knowning simply just a few things in mind.
